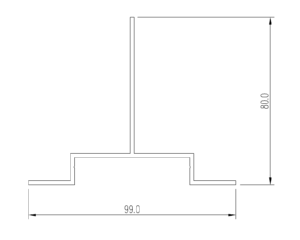

KWRY80 is type of a Y profile used for hanging ACP or metal sheets. It is stiffer KWRY profile due to 80 mm long foot. Both shape of the profile and its dimensions result is much more resistant product that can be used for installing heavier panels and be used when horizontal forces are increased. The middle part of the profile drains the water. Rain water that penetrates facade through vertical joints can drain easily.
- Gatunek stopu: EN AW-6060 lub EN AW-6063
- Stan dostawy: T6 lub T66
- Klasa reakcji na ogień: A1
- Odporność korozyjna: C3
| Parametr | Wartość |
|---|---|
| lx | 18,639 cm4 |
| ly | 20,392 cm4 |
| Wx | 3,197 cm3 |
| Wy | 4,120 cm3 |
| Pole | 3,800 cm2 |
| Waga | 1,025 kg/m |
