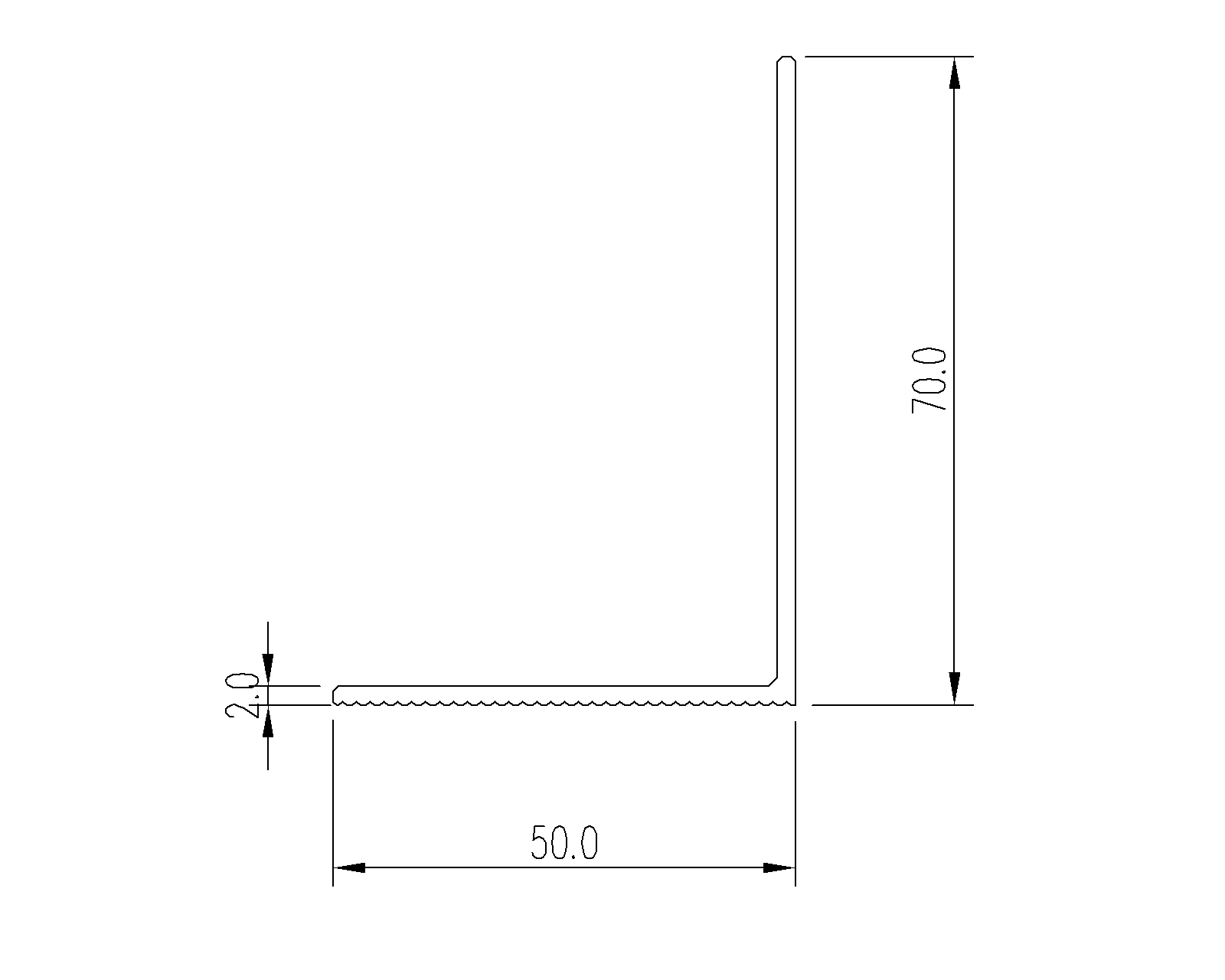

KWR2 L profile is used to support middle part of the cladding panel. It is our standard element and one of the stiffest L profiles. The adjustment is possible in 50 mm range which helps to deal with concrete unevennesses. Its 70 mm long “leg” and 2 mm thick walls increase the stiffness and allow for greater spacing of brackets. Grooved surface increases the connection area of adhesives.
- Gatunek stopu: EN AW-6060 lub EN AW-6063
- Stan dostawy: T6 lub T66
- Klasa reakcji na ogień: A1
- Odporność korozyjna: C3
| Parametr | Wartość |
|---|---|
| lx | 12,001 cm4 |
| ly | 5,154 cm4 |
| Wx | 2,480 cm3 |
| Wy | 1,315 cm3 |
| Pole | 2,305 cm2 |
| Waga | 0,622 kg/m |
