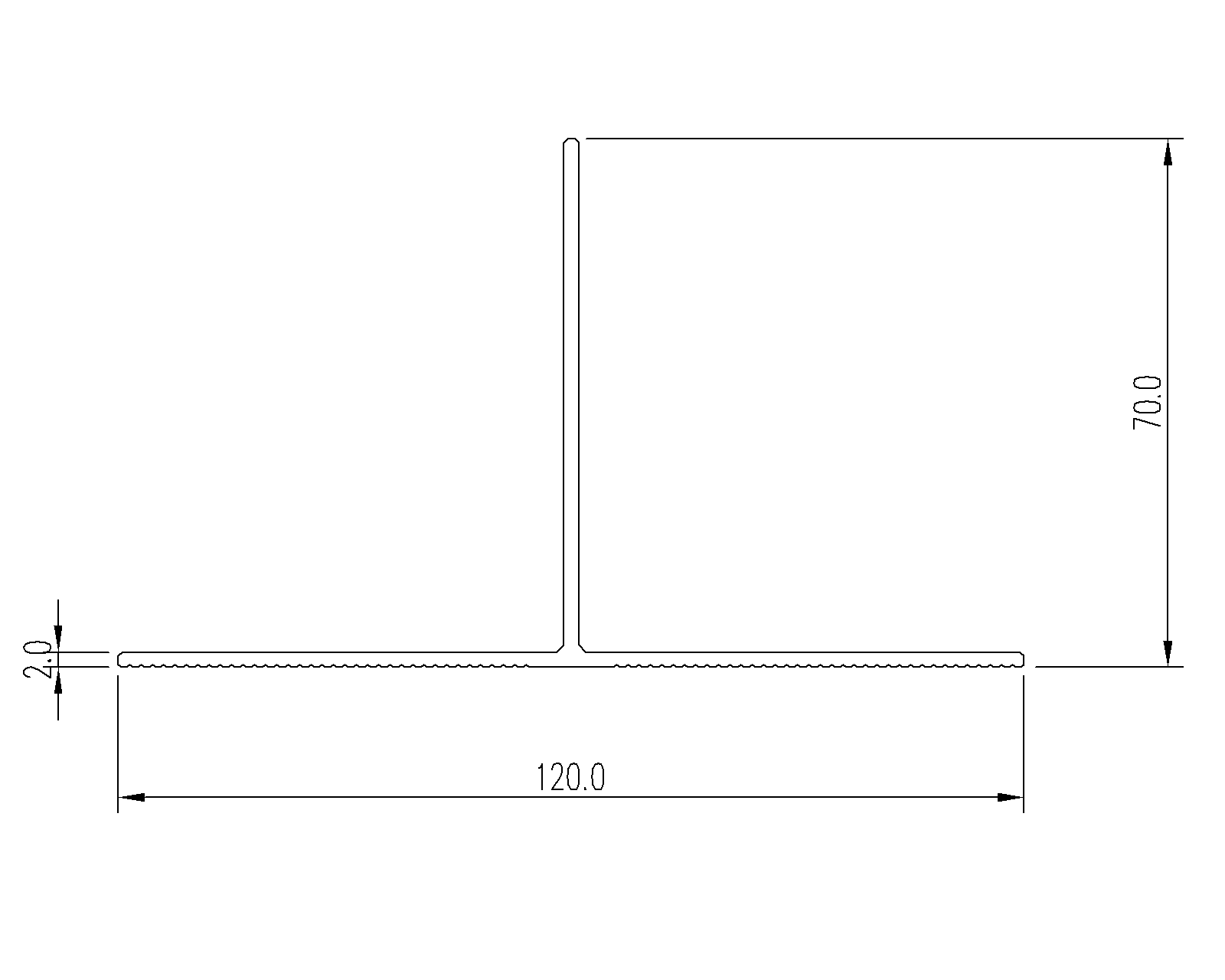

KWR1 T profile is used at the connection of cladding panels. It is our standard element and one of the stiffest T profiles. The adjustment is possible in 50 mm range which helps to deal with concrete unevennesses. Its 70 mm long “leg” and 2 mm thick walls increase the stiffness and allow for greater spacing of brackets. Grooved surface increases the connection area of adhesives. It is 120 mm wide and enables fixing point of the cladding panel to be 45 mm from its edge.
- Gatunek stopu: EN AW-6060 lub EN AW-6063
- Stan dostawy: T6 lub T66
- Klasa reakcji na ogień: A1
- Odporność korozyjna: C3
| Parametr | Wartość |
|---|---|
| lx | 15,580 cm4 |
| ly | 27,096 cm4 |
| Wx | 2,785 cm3 |
| Wy | 4,516 cm3 |
| Pole | 3,642 cm2 |
| Waga | 0,983 kg/m |
