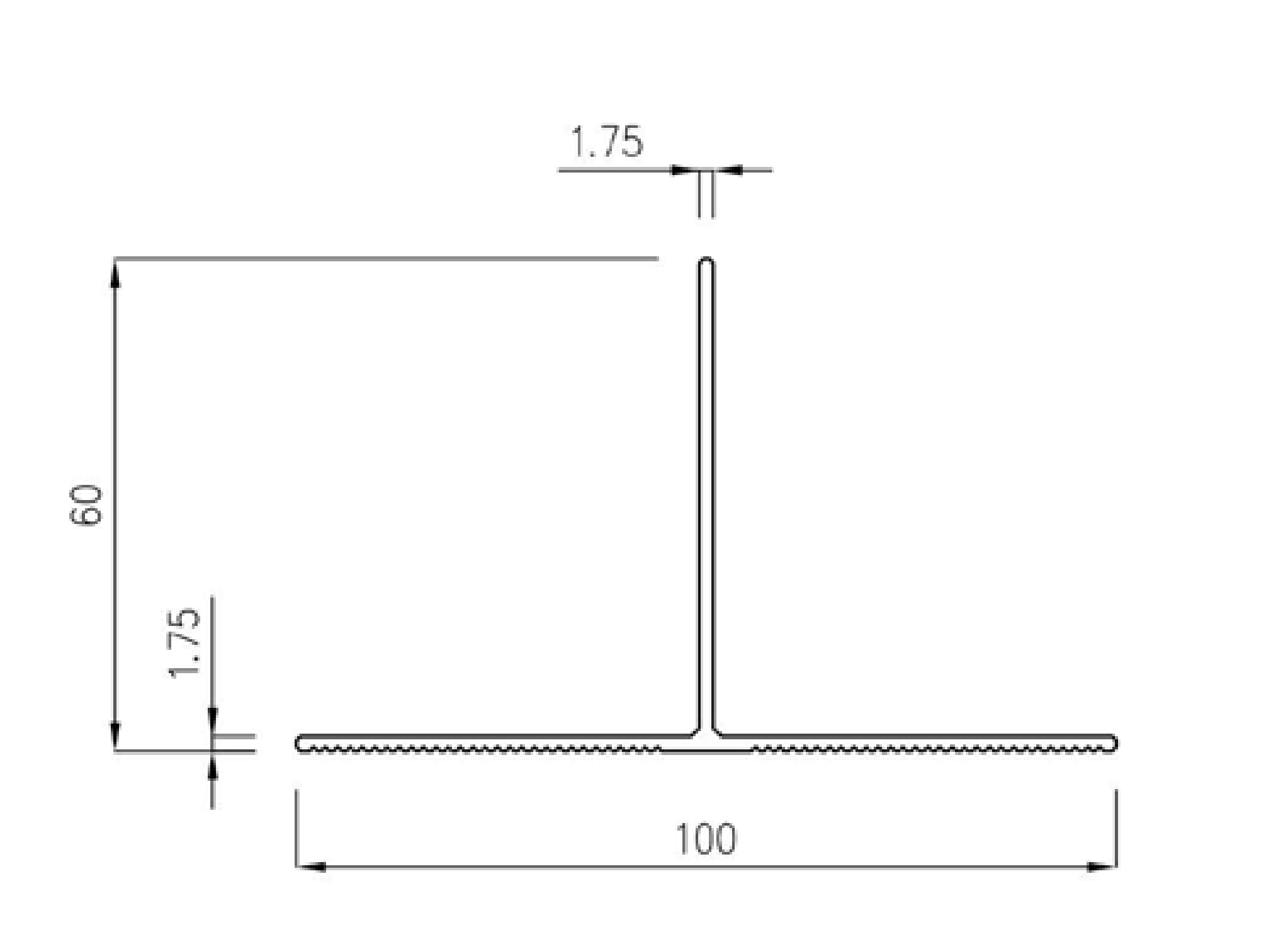

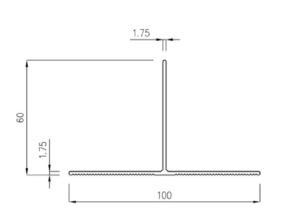

KWR9 T profile is used at vertical joints between the panels. It is not as common as our standard KWR1 profile. Its resistance is lower due to its dimensions. 60 mm foot allows enough adjustment. 100 mm wide front of the profile is usually enough to connect two neighbouring panels and keep the required distance from their edges to fixing points. KWR9 profile is used for projects with lower requirements and loads. They should be used up to 25 m above ground. Undoubtedly its biggest advantage is low price.

  • Wyrób przebadany w Instytucie Techniki Budowlanej.
  • Wyrób przebadany na podstawie wytycznych Europejskiej Organizacji ds. Oceny Technicznej

Alloy Grade: EN AW-6060 lub EN AW-6063

Delivery status: T6 lub T66

Reaction to fire class: A1

Corrosion resistance: C3

Parameter Value
lx 8,421 cm4
ly 13,179 cm4
Wx 1,773 cm3
Wy 2,636 cm3
Field 2,627 cm2
Weight 0,712 kg/m
