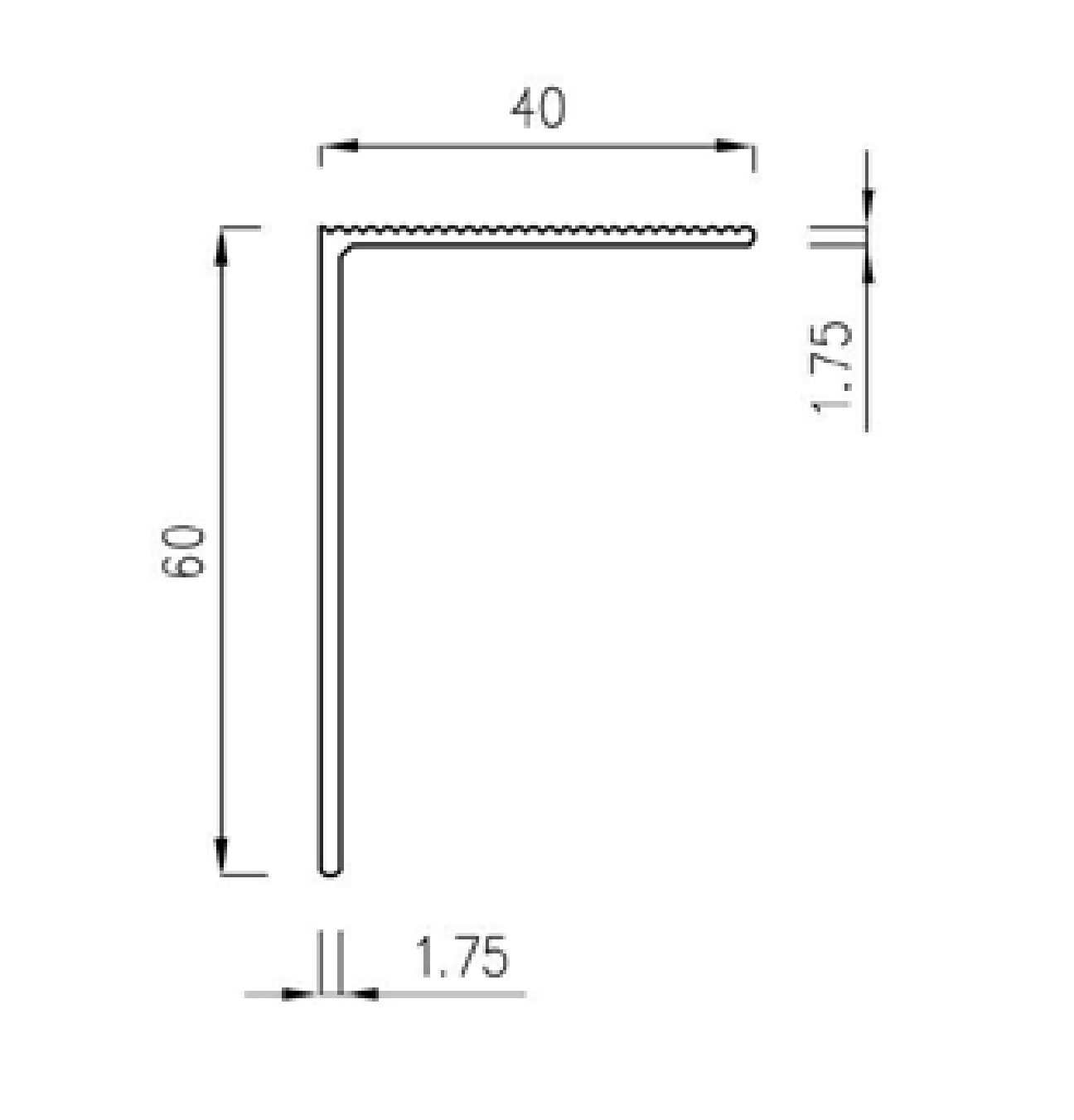

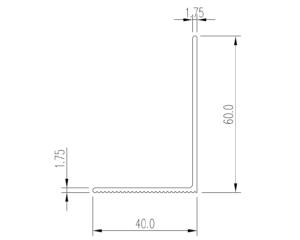

KWR10 is an L profile used to support middle part of the cladding panel. It is less resistant than KWR2 profile due to smaller dimensions and thinner 1,75 mm walls. 60 mm long “leg” of the profile still allows sufficient adjustment. 40 mm wide front side of the profile creates enough area for the adhesive to be used. KWR10 profiles are usually used on facades that are up to 25 m high and where the loads are lower. Undoubtedly its biggest advantage is low price.
- Gatunek stopu: EN AW-AIMgSi zgodny z normą EN AW-6060
- Stan dostawy: T66
- Klasa reakcji na ogień: A1
- Odporność korozyjna: C3
| Parametr | Wartość |
|---|---|
| lx | 6,354 cm4 |
| ly | 2,266 cm4 |
| Wx | 1,561 cm3 |
| Wy | 0,712 cm3 |
| Pole | 1,654 cm2 |
| Waga | 0,448 kg/m |
