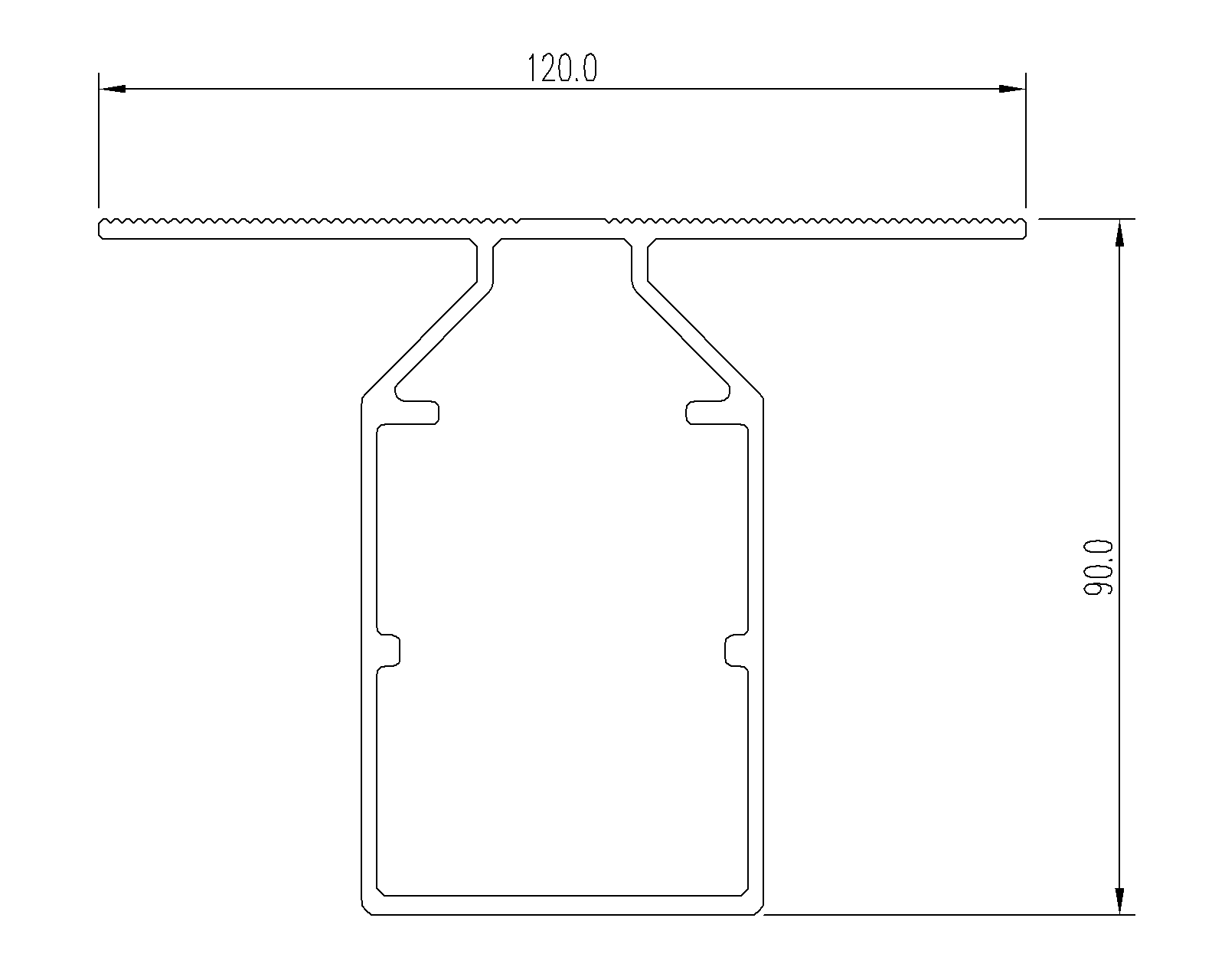

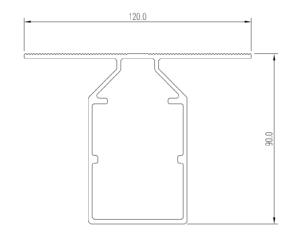

KWR6 is a reinforced T profile and part of BSP Floor to Floor or slab system. Together with K1 and K2 brackets the combined resistance and stiffness of the elements allow it to be fixed to floor slabs only and increases brackets spacing. It is mainly used for renovation of old buildings and to install facades on objects with weak walls where anchoring is allowed only at floor slabs or steel beams. All sides of the box shaped profile can be used for fixing additional elements – great solution for multi-dimensional elements.

  • Wyrób przebadany w Instytucie Techniki Budowlanej.
  • Wyrób przebadany na podstawie wytycznych Europejskiej Organizacji ds. Oceny Technicznej
  • Wyrób oznakowany Znakiem Budowlanym „B”.
  • Wyrób przebadany pod względem wymogów paragrafu 225 Rozporządzenia Ministra Infrastruktury w sprawie warunków technicznych.
  • Wyrób przebadany na Politechnice Warszawskiej.
  • Gatunek stopu: EN AW-6060 lub EN AW-6063
  • Stan dostawy: T6 lub T66
  • Klasa reakcji na ogień: A1
  • Odporność korozyjna: C3

Parametr Wartość
lx 95,865 cm4
ly 58,829 cm4
Wx 17,540 cm3
Wy 9,805 cm3
Pole 8,536 cm2
Waga 2,305 kg/m
