KG1 bracket is used on edges of the walls. Two neighbouring cladding panels can be fixed perpendicularly to one profile. Less elements are used that way. This solution, used instead of L profile to connect cladding panels, is much stiffer and more resistant and meets requirements of cladding panels manufacturers.
- Gatunek stopu: EN AW-6060 lub EN AW-6063
- Stan dostawy: T6 lub T66
- Klasa reakcji na ogień: A1
- Odporność korozyjna: C3

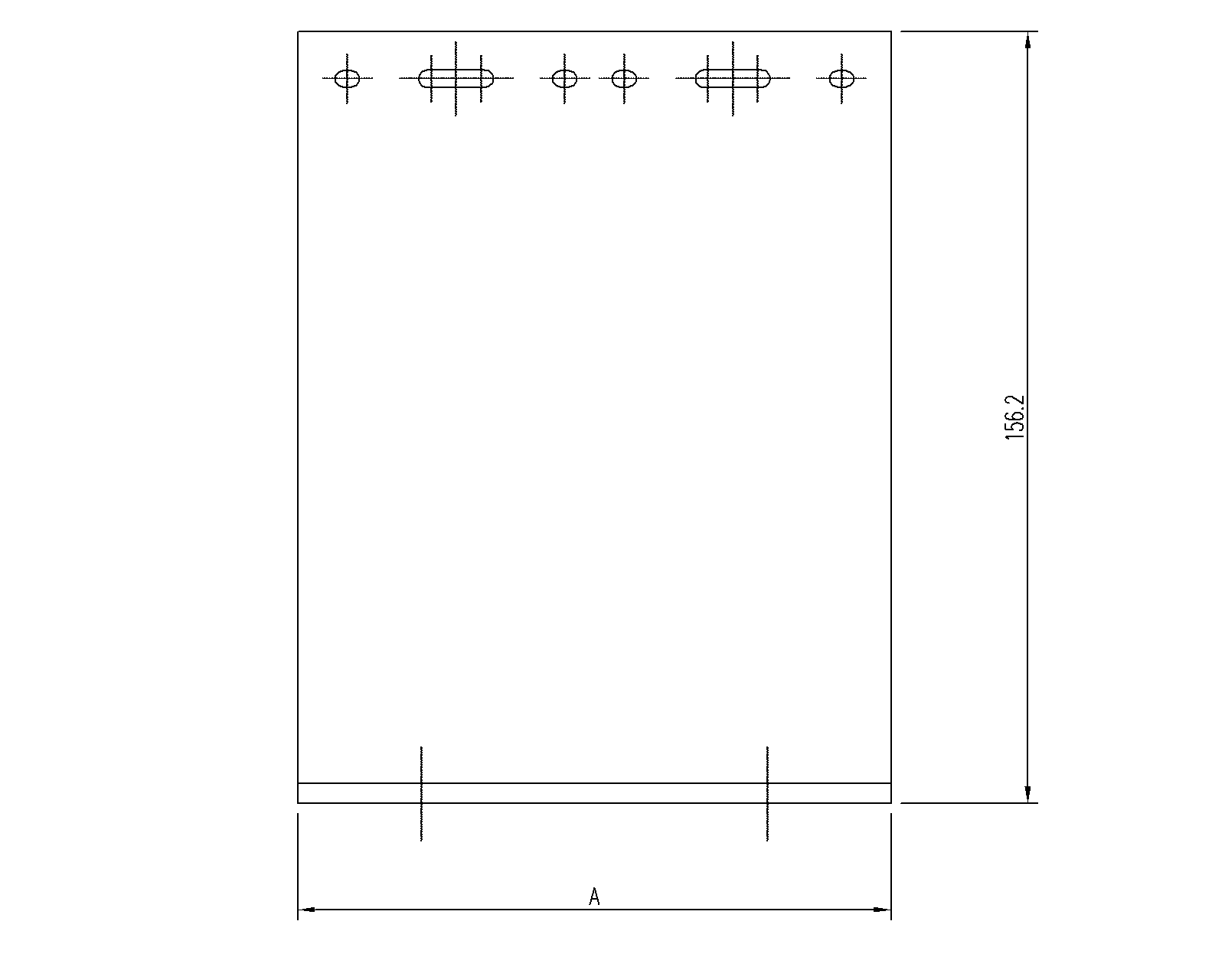

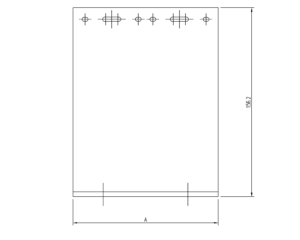

| Wariant | Wymiar A [mm] |
|---|---|
| KG1/150 fix | 150 |
| KG1/120 fix | 120 |
