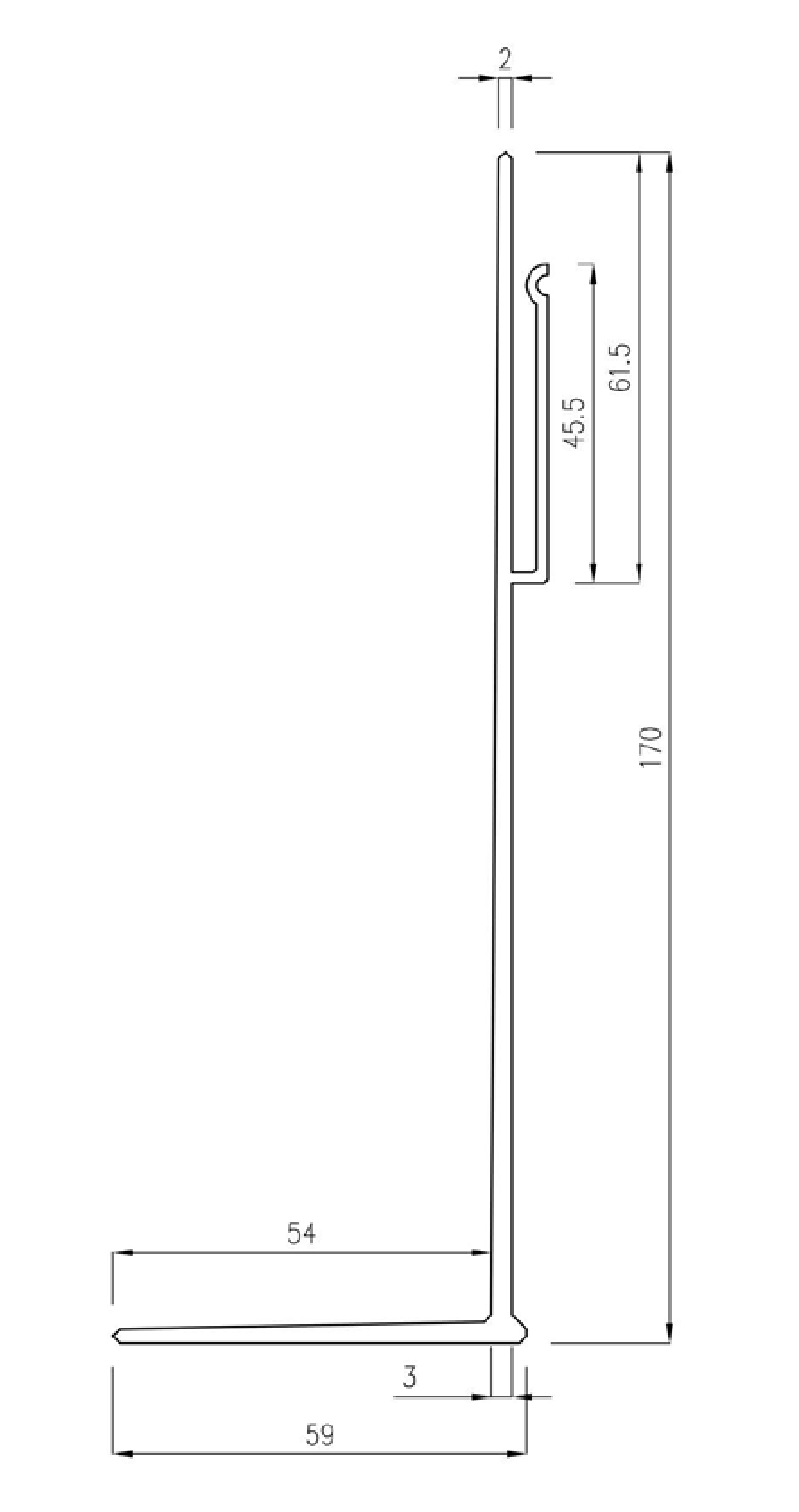

KW1 EB bracket
KW1 EB bracket has very similar shape to standard KW1 bracket but is thinner (2-3 mm). It is used for lower loads as they are less resistant. Undoubtedly its advantage is low price.
Alloy Grade: EN AW-6060 lub EN AW-6063
Delivery status: T6 lub T66
Reaction to fire class: A1
Corrosion resistance: C3
| Variations | Dimension A [mm] |
Dimension B [mm] |
|---|---|---|
| KW1 EB/170-150 FIX/LOS | 170 | 150 |
| KW1 EB/170-120 FIX/LOS | 170 | 120 |
| KW1 EB/170-90 FIX/LOS | 170 | 90 |
| KW1 EB/170-60 FIX/LOS | 170 | 60 |
| KW1 EB/170-40 FIX/LOS | 170 | 40 |
