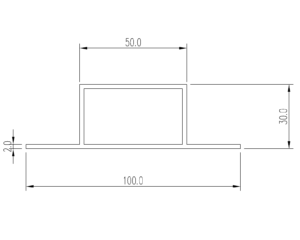

RW2E is a top hat profile designed for short outreaches. It is fixed directly to the buildings structure, which due to lack of brackets results in lower cost of subframe. It can also be used as a second horizontal layer fixed to vertical L and T profiles for narrow cladding panels.
- Gatunek stopu: EN AW-6060 lub EN AW-6063
- Stan dostawy: T6 lub T66
- Klasa reakcji na ogień: A1
- Odporność korozyjna: C3
| Parametr | Wartość |
|---|---|
| lx | 5,989 cm4 |
| ly | 24,737 cm4 |
| Wx | 3,244 cm3 |
| Wy | 4,947 cm3 |
| Pole | 4,038 cm2 |
| Waga | 1,090 kg/m |
