U shaped KWD bracket is used to fix timber elements to buildings structure. It has both fixed and sliding slots on its sides. Timber elements can be up to 50 mm wide.
- Gatunek stopu: EN AW-6060 lub EN AW-6063
- Stan dostawy: T6 lub T66
- Klasa reakcji na ogień: A1
- Odporność korozyjna: C3

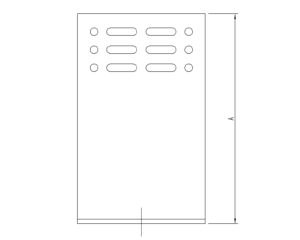

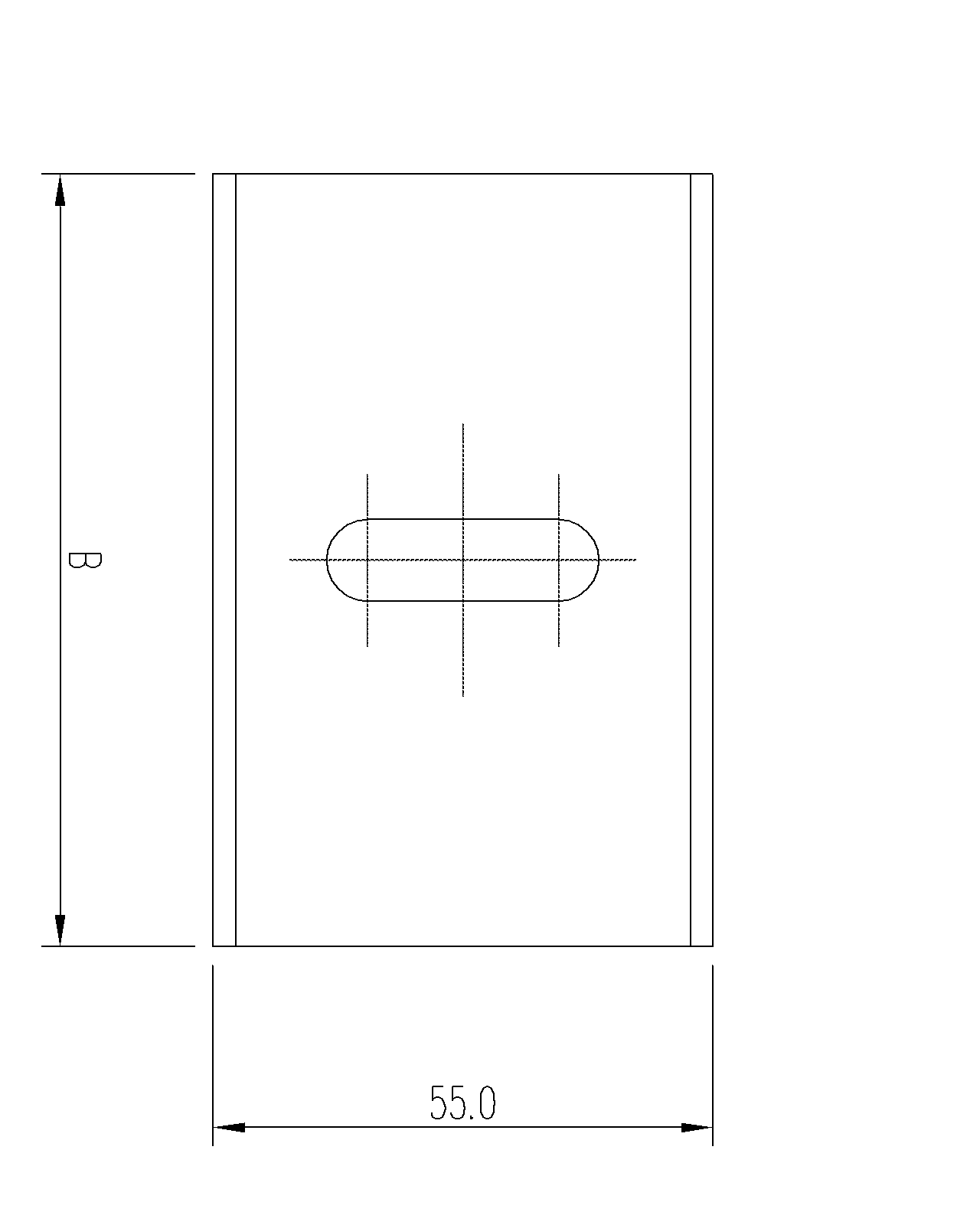

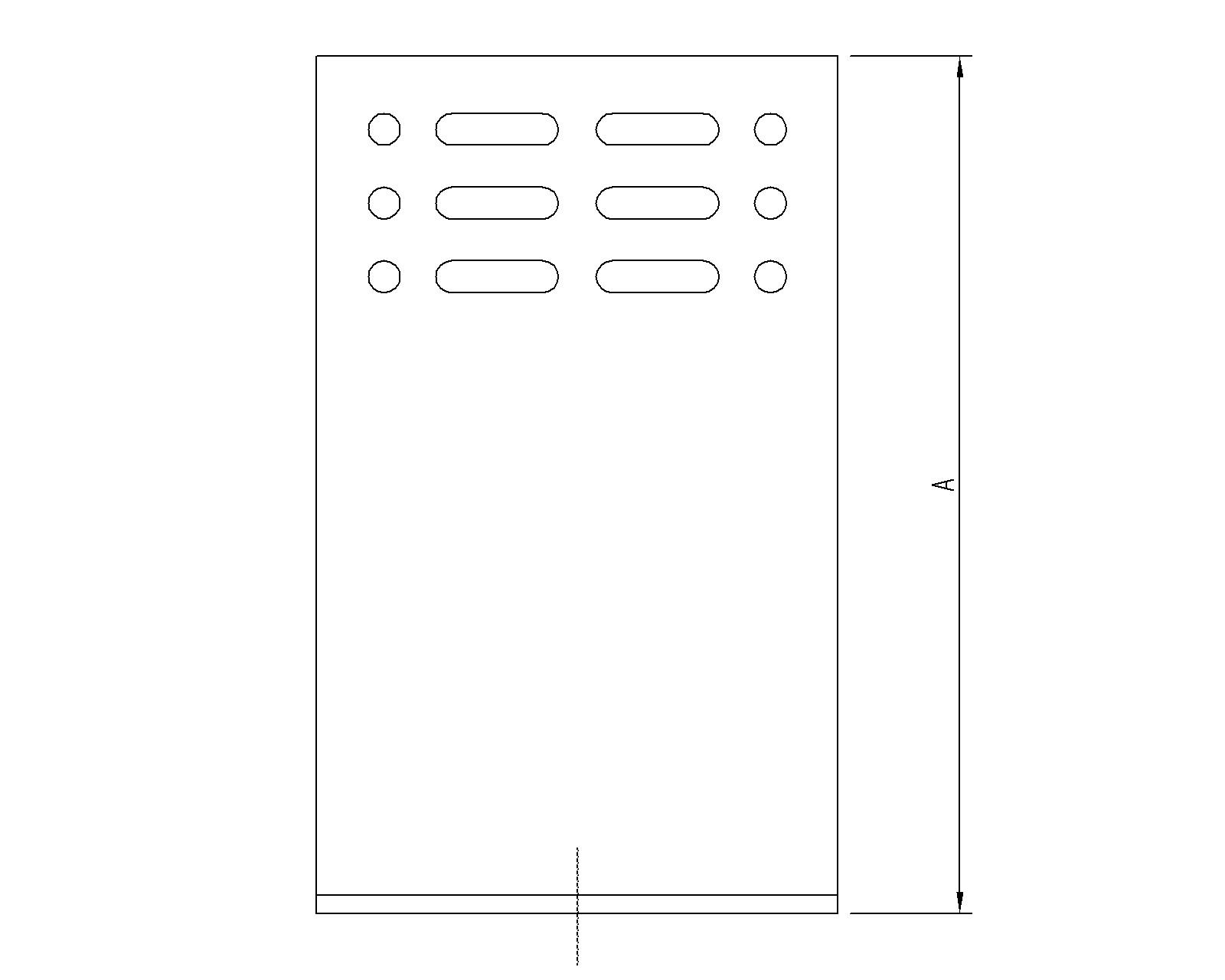

| Wariant | Wymiar A [mm] | Wymiar B [mm] |
|---|---|---|
| KWD/160-85 | 160 | 85 |
| KWD/140-85 | 140 | 85 |
| KWD/120-85 | 120 | 85 |
| KWD/100-85 | 100 | 85 |
| KWD/80-85 | 80 | 85 |
| KWD/60-85 | 60 | 85 |
| KWD/160-160 | 160 | 160 |
| KWD/140-160 | 140 | 160 |
| KWD/120-160 | 120 | 160 |
| KWD/100-160 | 100 | 160 |
| KWD/80-160 | 80 | 160 |
| KWD/60-160 | 60 | 160 |
