KWP1 extension piece is used to level the surface of the facade in case of unevennesses. Only one size of brackets can be used which has very positive impact on the logistics process. The main purpose of this element is to extend the outreach if even the longest BSP bracket is not sufficient.
- Gatunek stopu: EN AW-6060 lub EN AW-6063
- Stan dostawy: T6 lub T66
- Klasa reakcji na ogień: A1
- Odporność korozyjna: C3

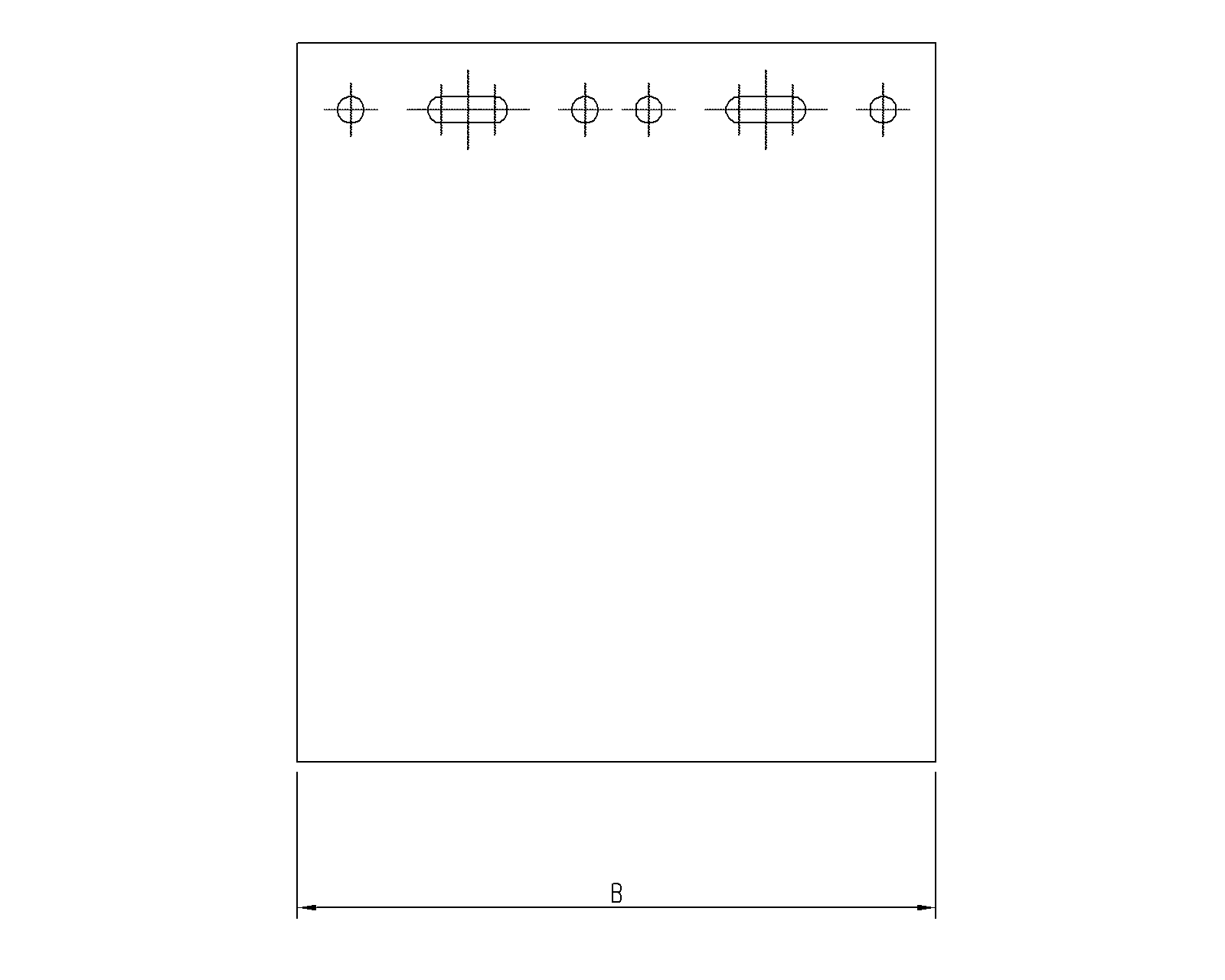

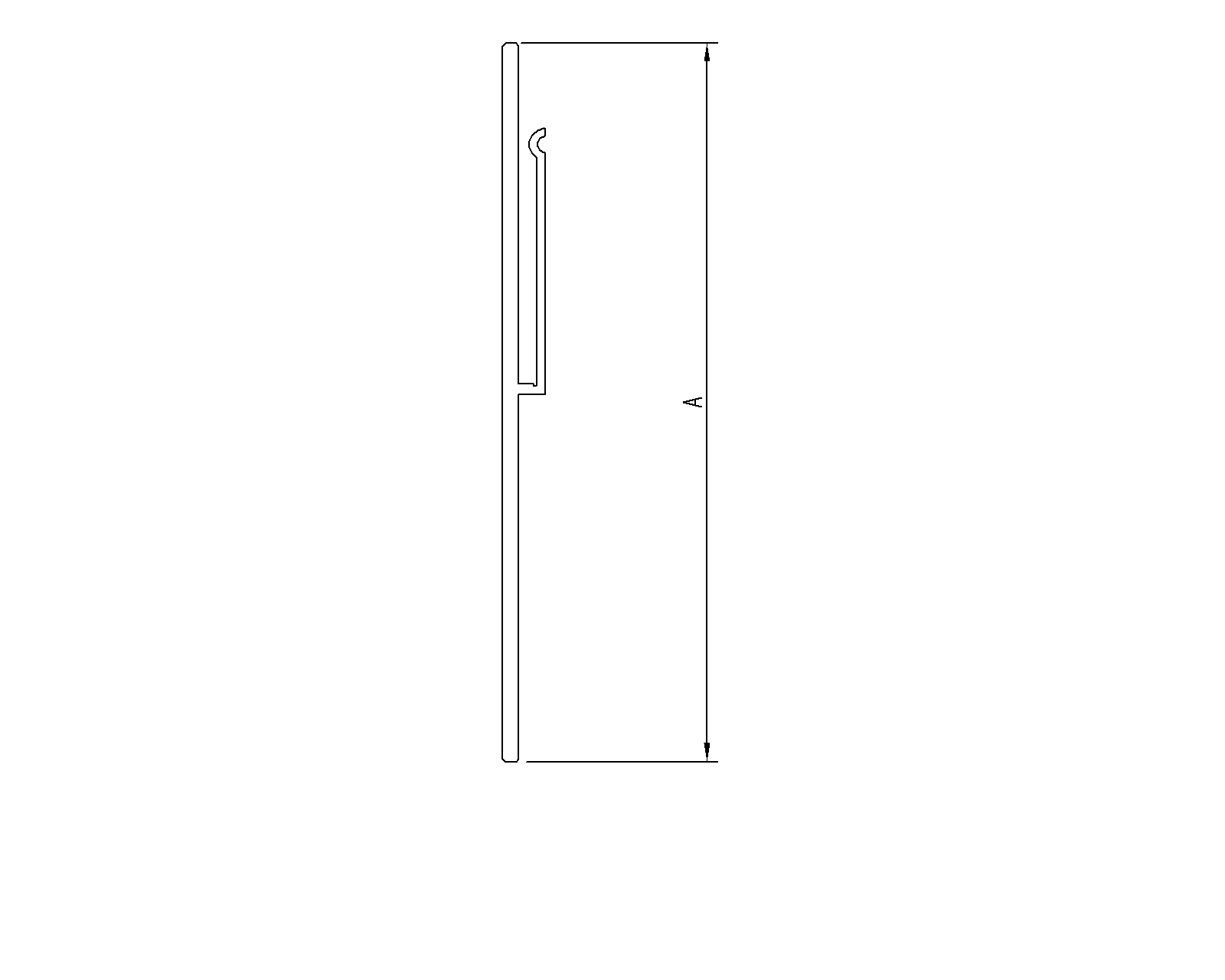

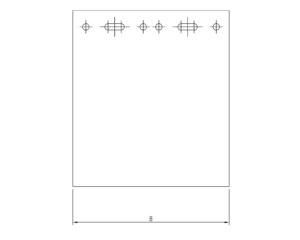

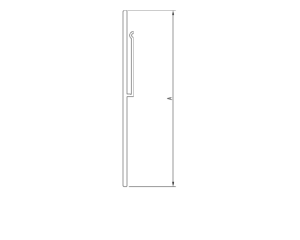

Wariant | Wymiar A [mm] | Wymiar B [mm] |
---|---|---|
KWP1 135-150 | 135 | 150 |
KWP1 135-120 | 135 | 120 |
KWP1 135-90 | 135 | 90 |
KWP1 135-60 | 135 | 60 |
