Unlike K1 and K2 brackets K3 is used to fix aluminium curtain walls from the top or the bottom perpendicularly. The beams are slid onto the brackets. It can also be used in locations where side/wall mounting is impossible, for example support structures for louvers on the roof.

  • Gatunek stopu: EN AW-6060 lub EN AW-6063
  • Stan dostawy: T6 lub T66
  • Klasa reakcji na ogień: A1
  • Odporność korozyjna: C3

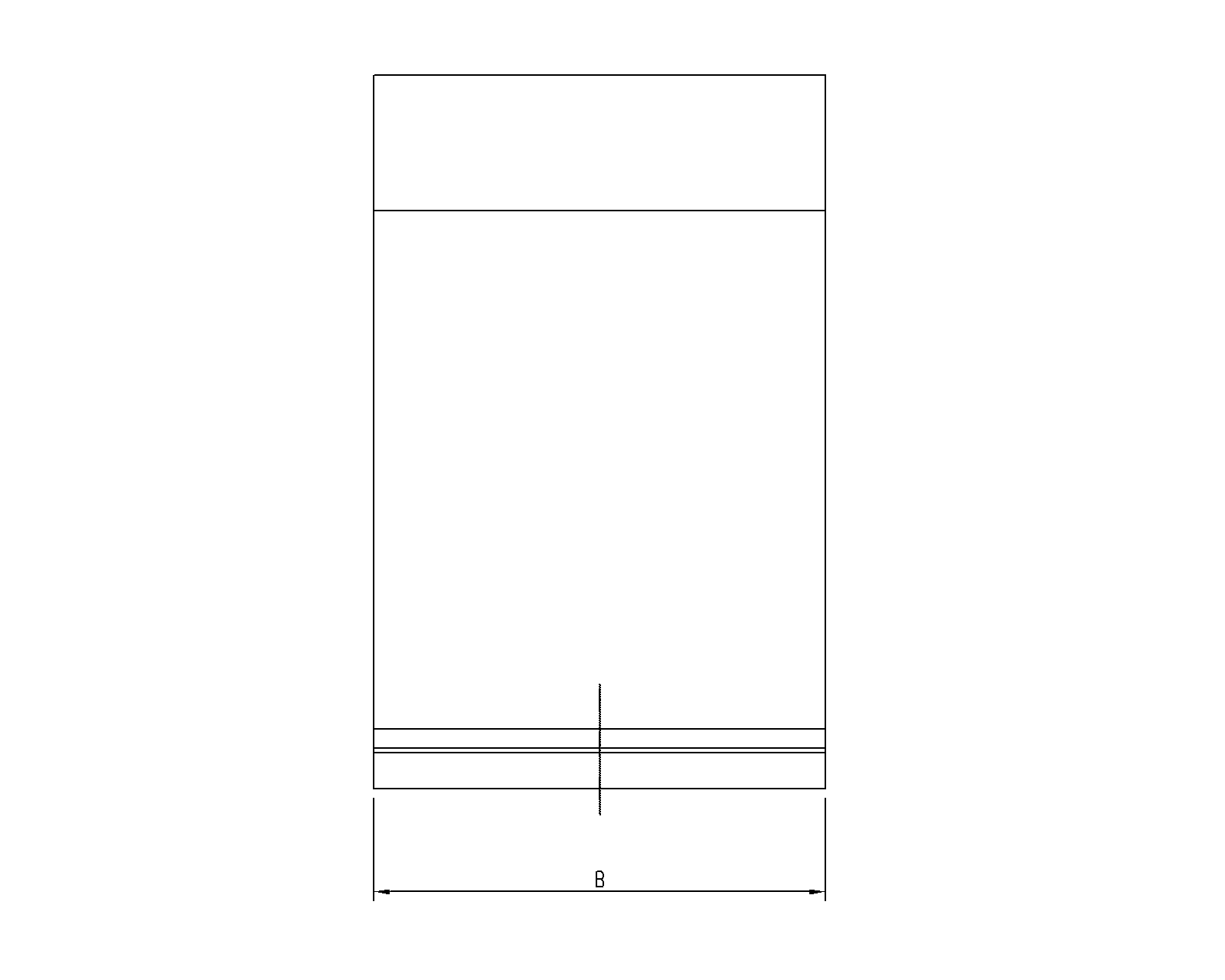

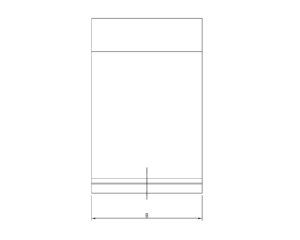

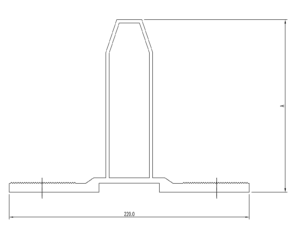

Wariant Wymiar A [mm] Wymiar B [mm]
K3/158-80 158 80
K3/158-100 158 100
K3/158-120 158 120
K3/158-150 158 150
